YJ DAC6 XMOS208+ES9038 Digital turntable decoder HIFI Audio Decoder DAC Ear Amplifier USB Support DSD
YJ DAC6 XMOS208+ES9038 Digital turntable decoder HIFI Audio Decoder DAC Ear Amplifier USB Support DSD
The casing is made of aviation grade aluminum alloy through deep processing
Voltage: DC 12V (equipped with 100V-240VAC to 12VDC adapter)
Product details:
The main circuit of the electrolytic capacitor signal adopts imported capacitors. and the main filtering capacitor adopts imported specialized capacitors to ensure strong and continuous power support.
The resistance adopts a five ring metal resistor. and the main circuit adopts a high-precision SMT resistor. ensuring a good signal-to-noise ratio of the entire machine.

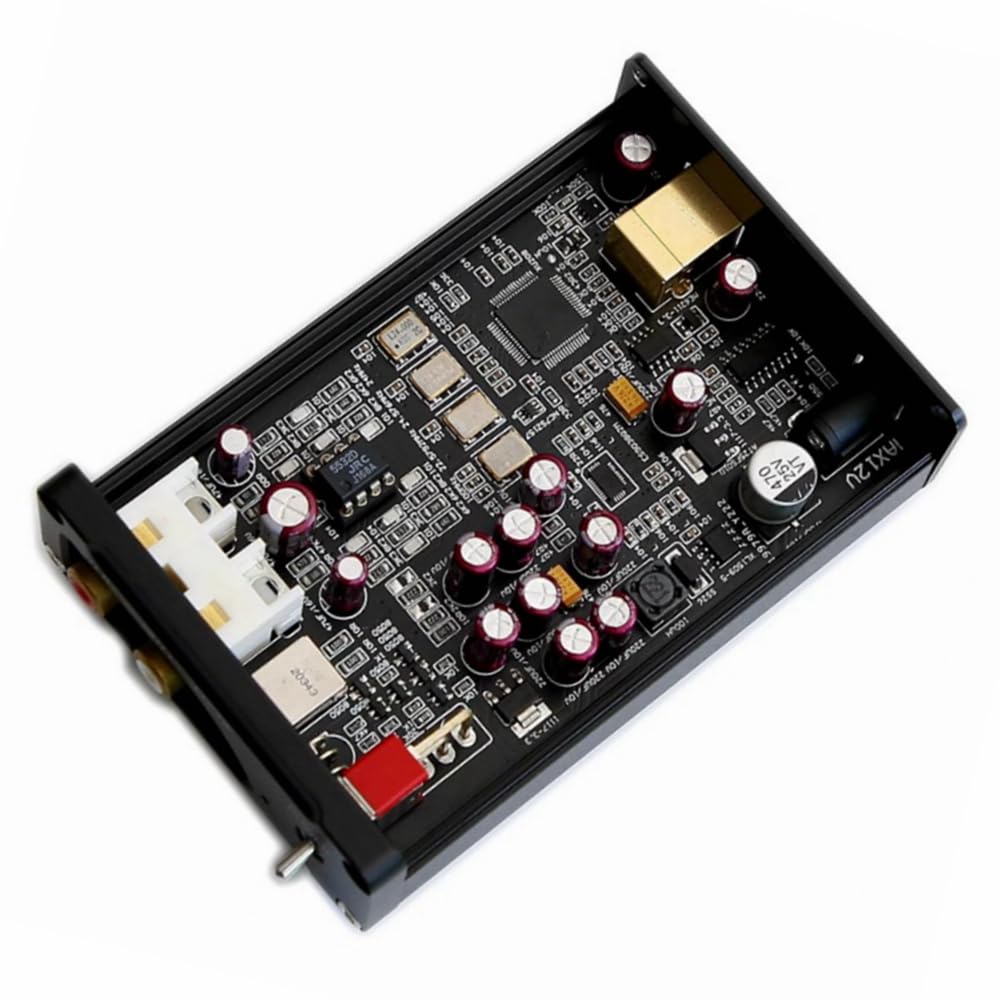

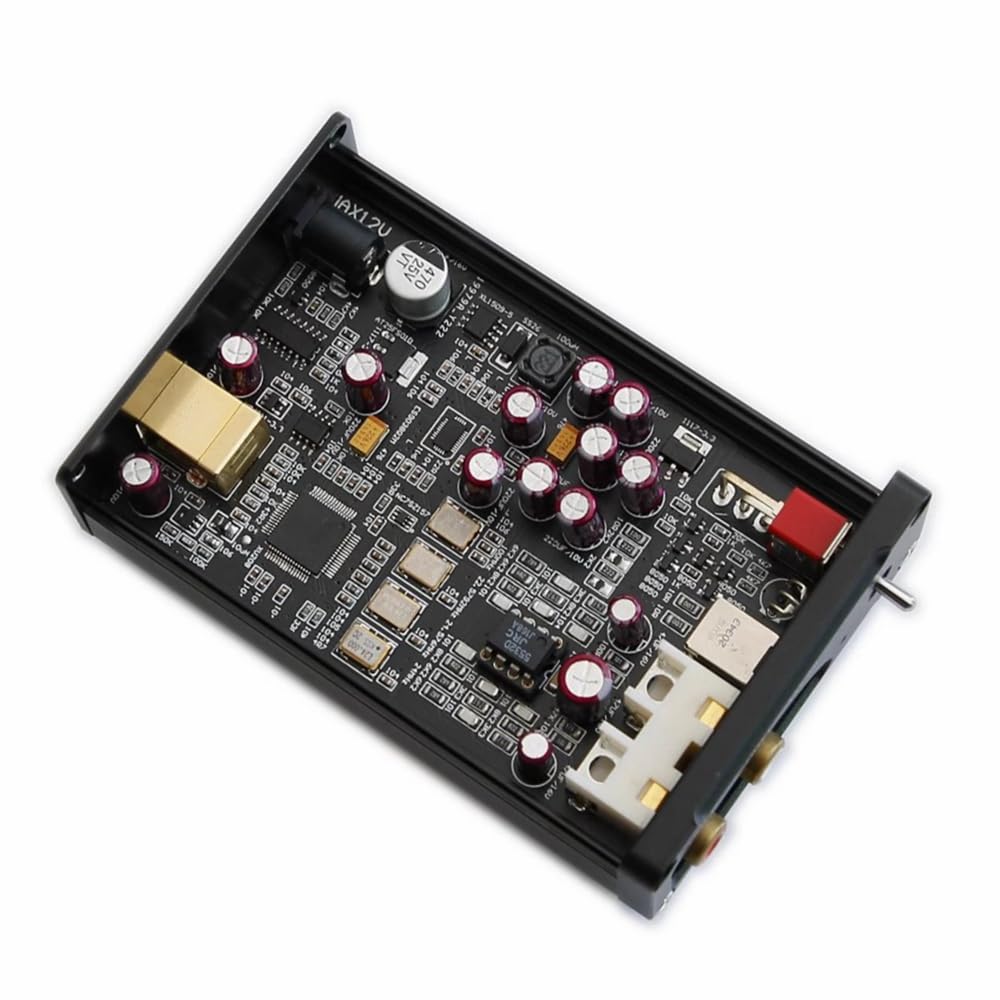

The PCB is made of 1.6mm thick RF4 board. 2.0A thick copper. and fully tin sprayed to ensure good current passing performance.
Adopting gold-plated plug-in RCA seat
The operational amplifier adopts JRC5532 with better performance
USB adopts XMOS208 imported chip. and decoding uses ES9038Q2M
The casing is made of aviation grade aluminum alloy through deep processing
Basic parameters:
Voltage: DC 12V (equipped with 100V-240VAC to 12VDC adapter)
Dimensions: length 109 * width 73 * height 30MM
Net weight: 0.15KG
Input support:
USB：PCM44.1k~384k 32bit/DSD64、DSD128
