The ROP Shop OEM Annovi Reverberi AR 7/8" Shaft Pressure Washer Pump fits Craftsman 580752570 580.75257 580752610
The ROP Shop OEM Annovi Reverberi AR 7/8" Shaft Pressure Washer Pump fits Craftsman 580752570 580.75257 580752610

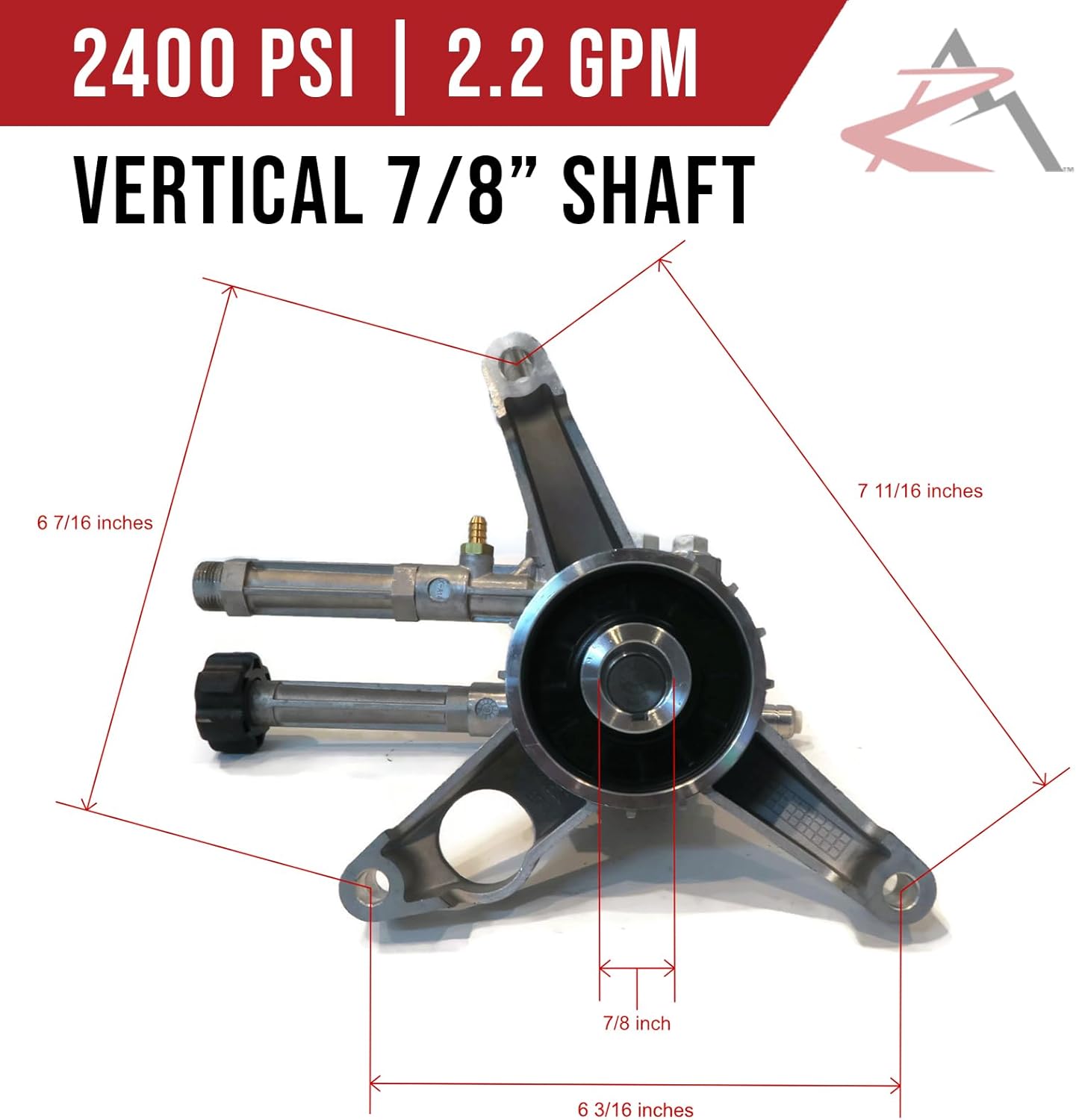

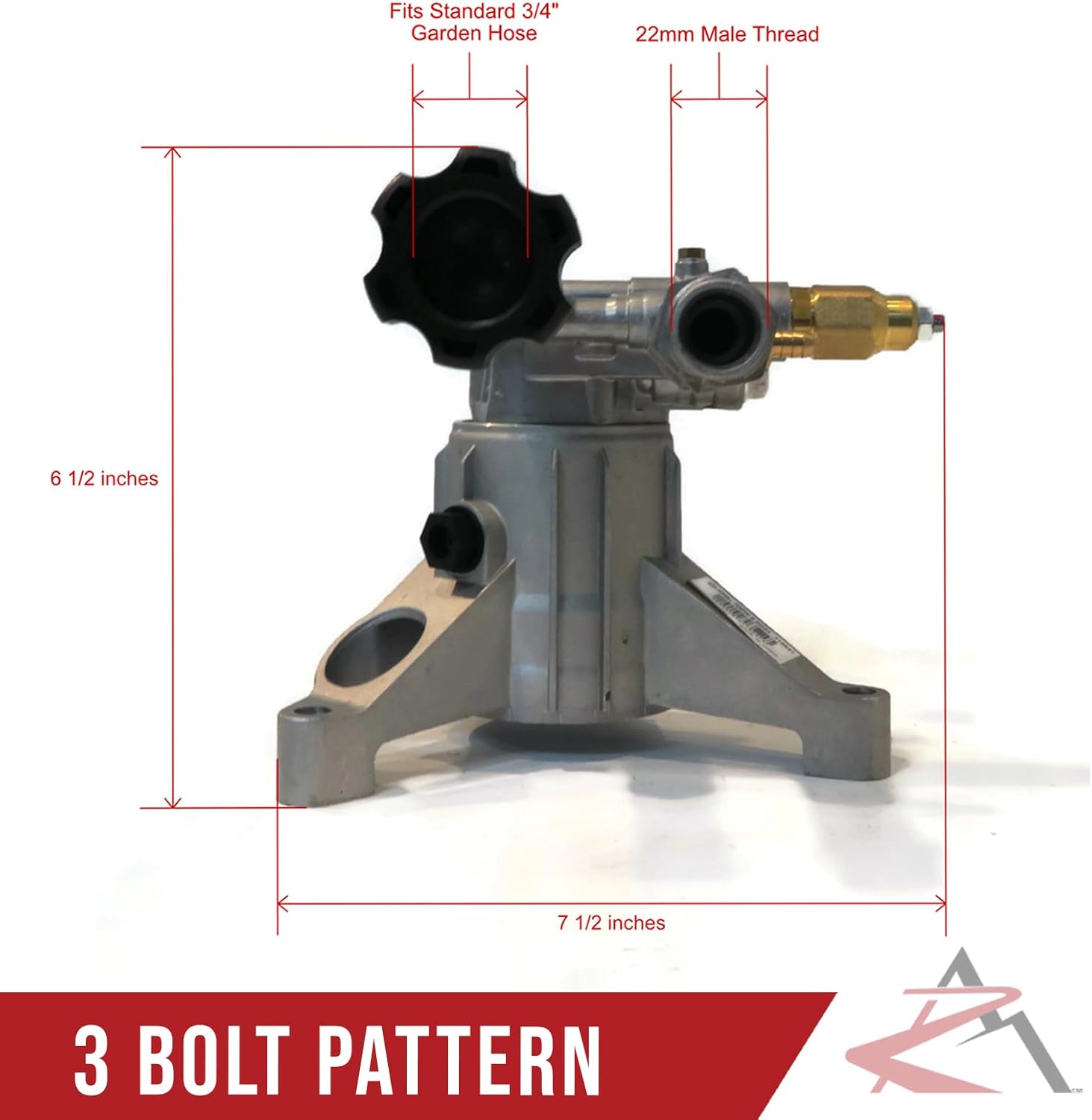

Specs - Max Pressure: 2400 PSI. Max Flow: 2.2 GPM. Max Pump Speed: 3400 RPM. Shaft Size: 7/8". Shaft Version: D. Shaft Type: Hollow. 3 Bolt Pattern. Max Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 1.4M. Oil Capacity: 2.2oz. Refer to images for more information

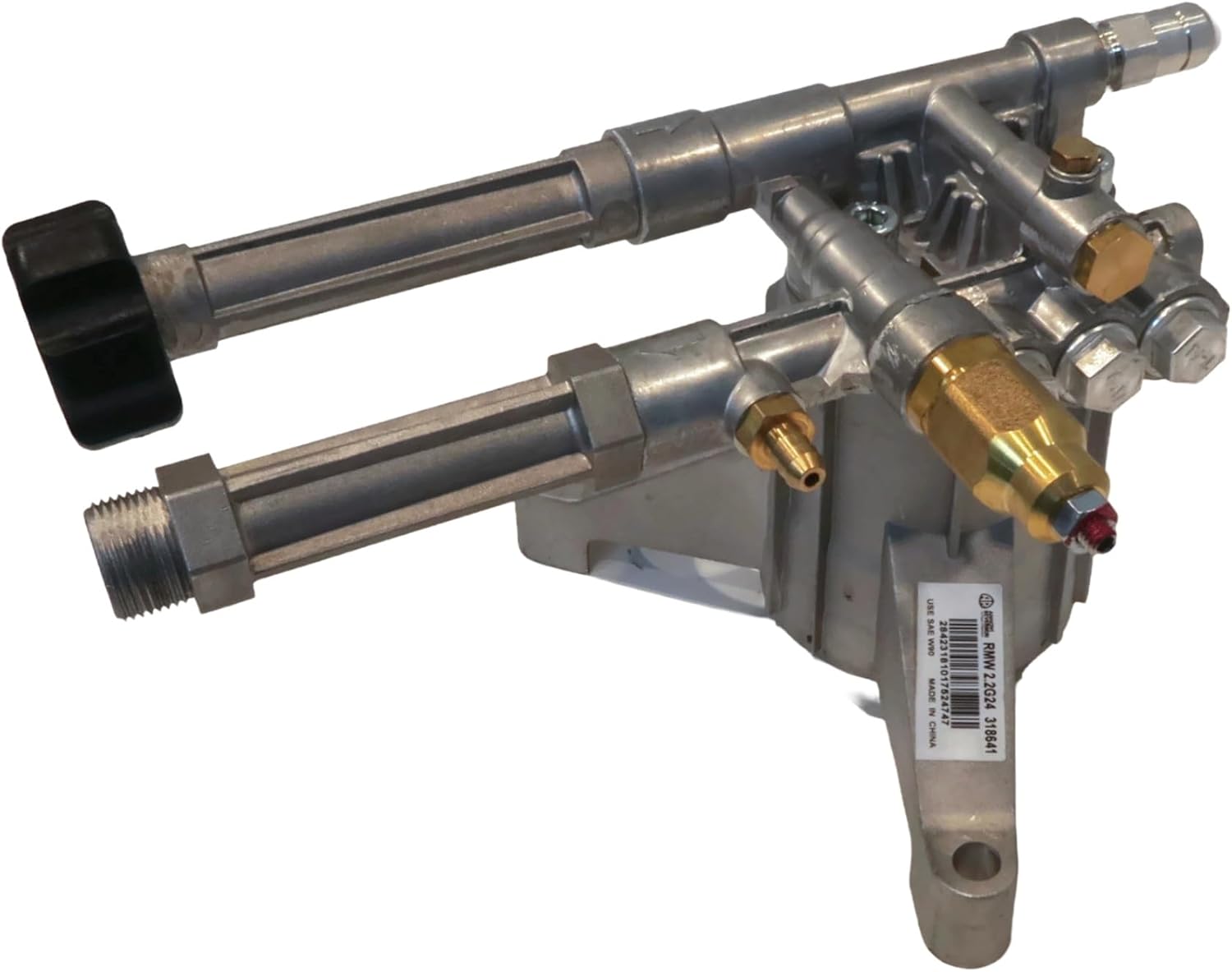

Includes - (1) Vertical Pressure Washer Pump. RMW22G24-EZ-SX. (1) Thermal Release Valve. (1) Chemical Injector (both come installed); comes as shown in the first image (does NOT include engine shaft key or bolts)

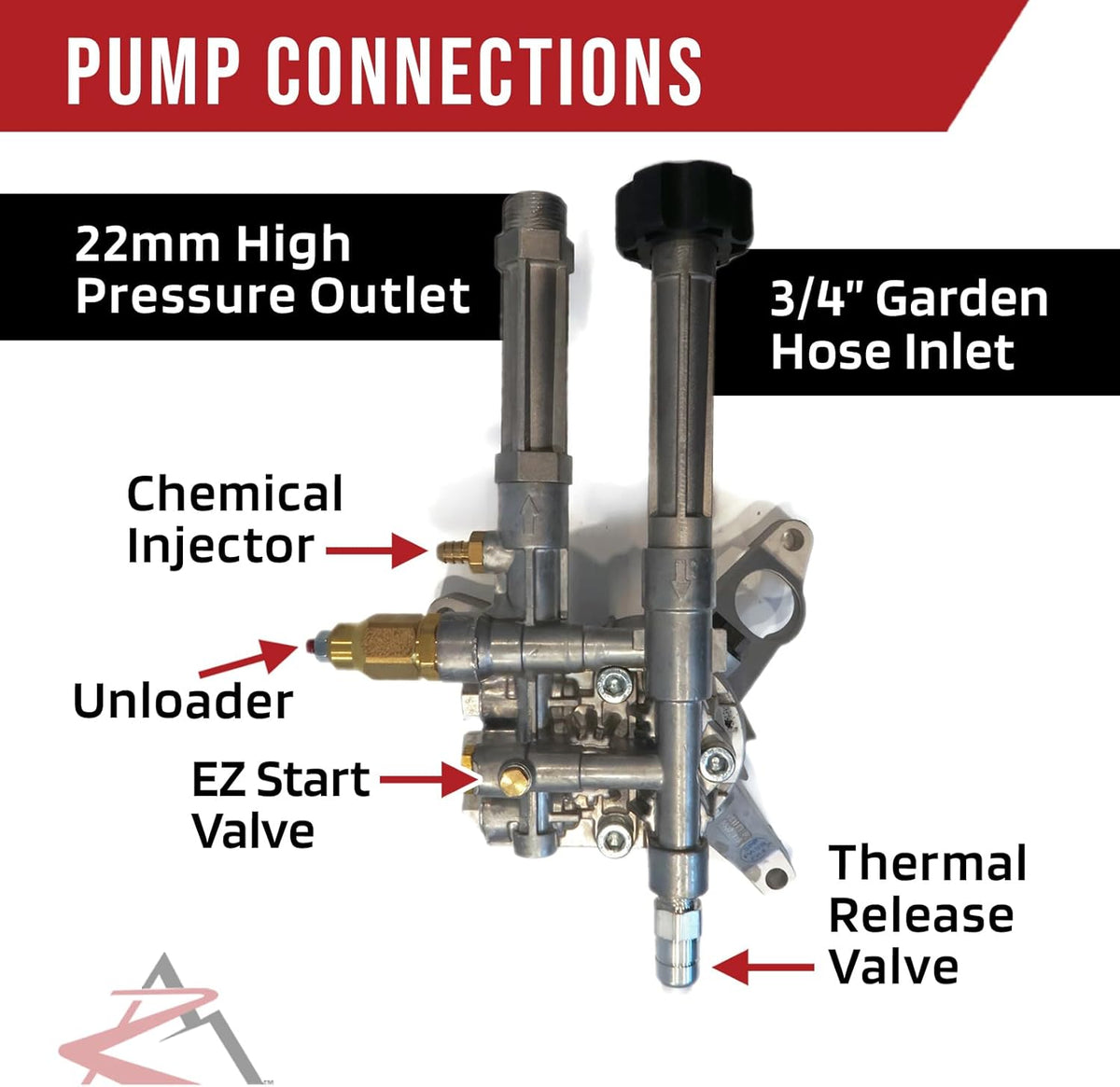

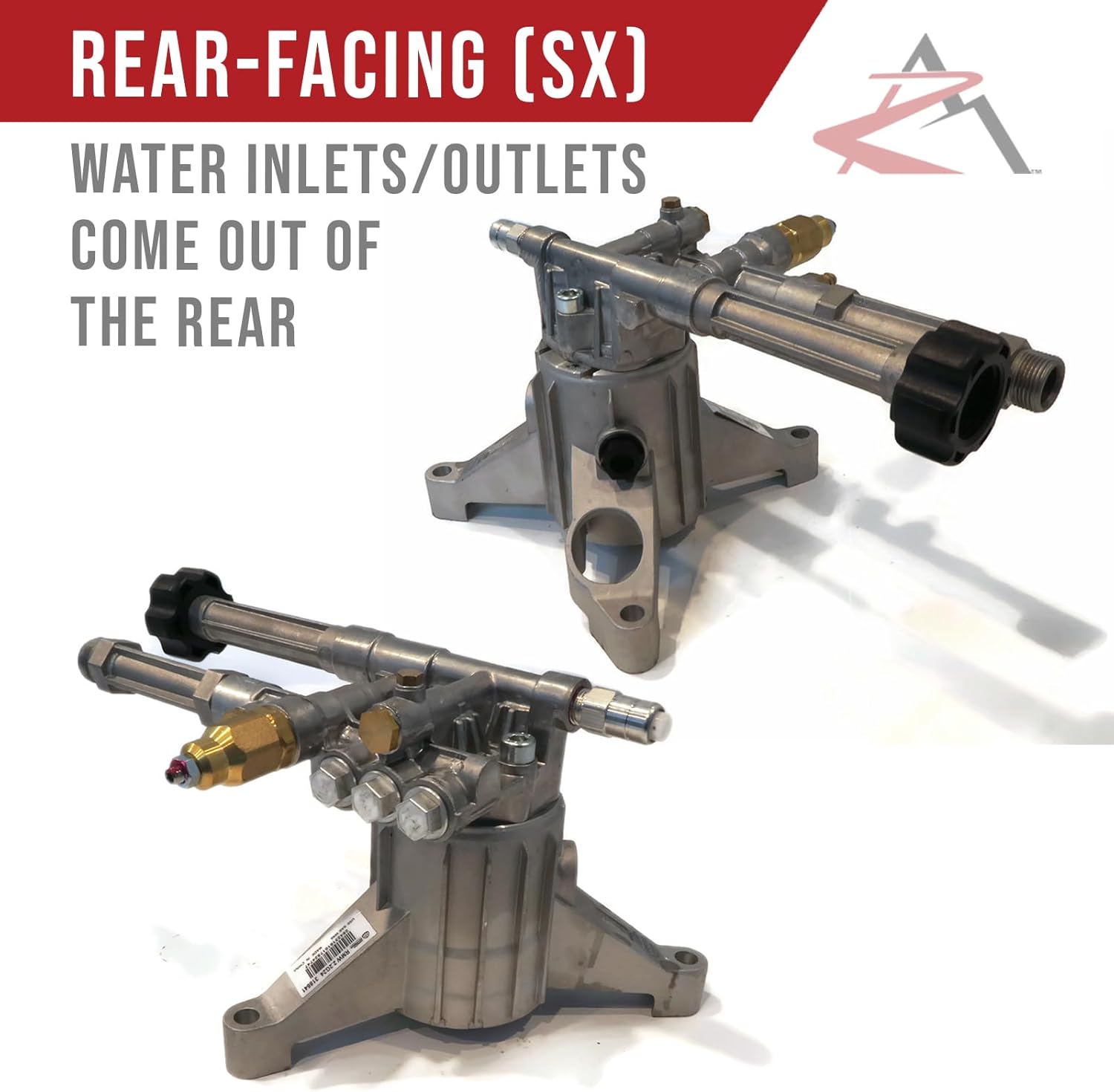

This pump is for vertical gas engine driven units. In some instances. the pump may need to be removed to change engine oil. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines in 4-7 HP. The pump includes a built-in pressure control valve. downstream chemical injection system. EZ start valve and thermal relief valve. This is an EZ-SX Rear-Facing or Left-Handed SX Pump. which has the outlet facing the back
Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
1Pressure Washer Pumps2Pumps & Spray Kits3Guns. Wands & Nozzles 4Parts & Accessories
Are pressure washer pumps interchangeable?
Many pumps are. However. compatible replacement options do vary depending on your pressure washer's engine shaft diameter & engine orientation. the original pump's bolt pattern. and your engine's horsepower.
What pump do I need if my shaft has a spline/gear instead of a keyway?
Your original pump was likely a strap-style (or bow tie) pump. That style isn't made anymore. However. you can remove the spline and use your model number to find a replacement pump that you'll install directly onto the shaft with a keyway.
Do I need a keyway for installation. and do your pumps come with one?
Our pumps do require a keyway for installation onto the engine shaft. If a keyway is pictured in the listing. it will come with one. If you need to purchase one separately. you can do so from our catalog.
Do I need to change the oil in my pump?
Many of our pumps don't require oil maintenance. but some models do need oil changes. Generally. pumps with an oil vent port will need regular oil changes. Pumps without that port are sealed units and don't need oil changes.
