Himore | 2600 PSI 2.4 GPM 7/8" Horizontal Shaft with Keyway, 2.4G26 Pressure Washer Pump, fits many Makes & Models with Honda GC160 Horizontal Engines
Himore | 2600 PSI 2.4 GPM 7/8" Horizontal Shaft with Keyway, 2.4G26 Pressure Washer Pump, fits many Makes & Models with Honda GC160 Horizontal Engines

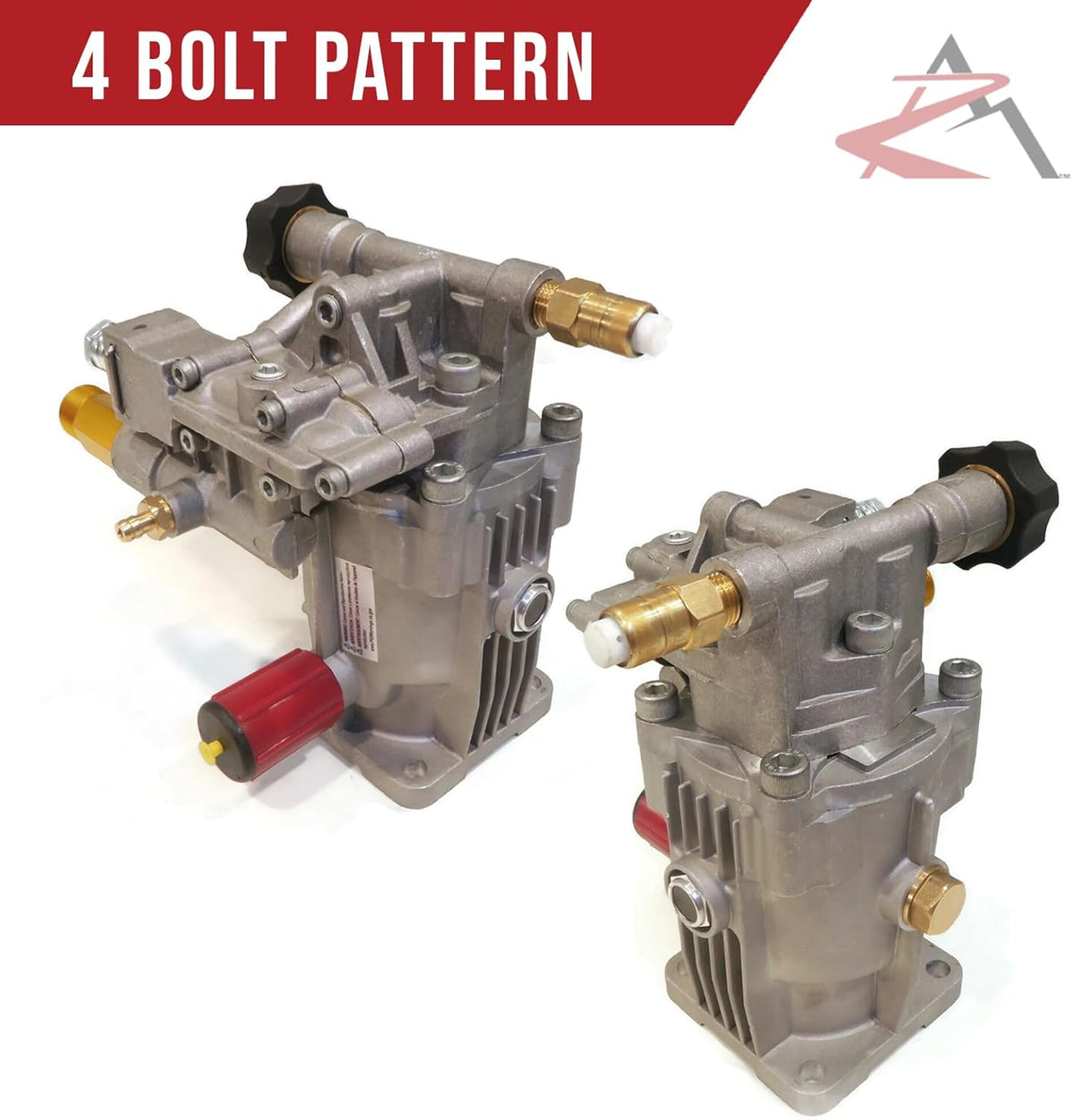

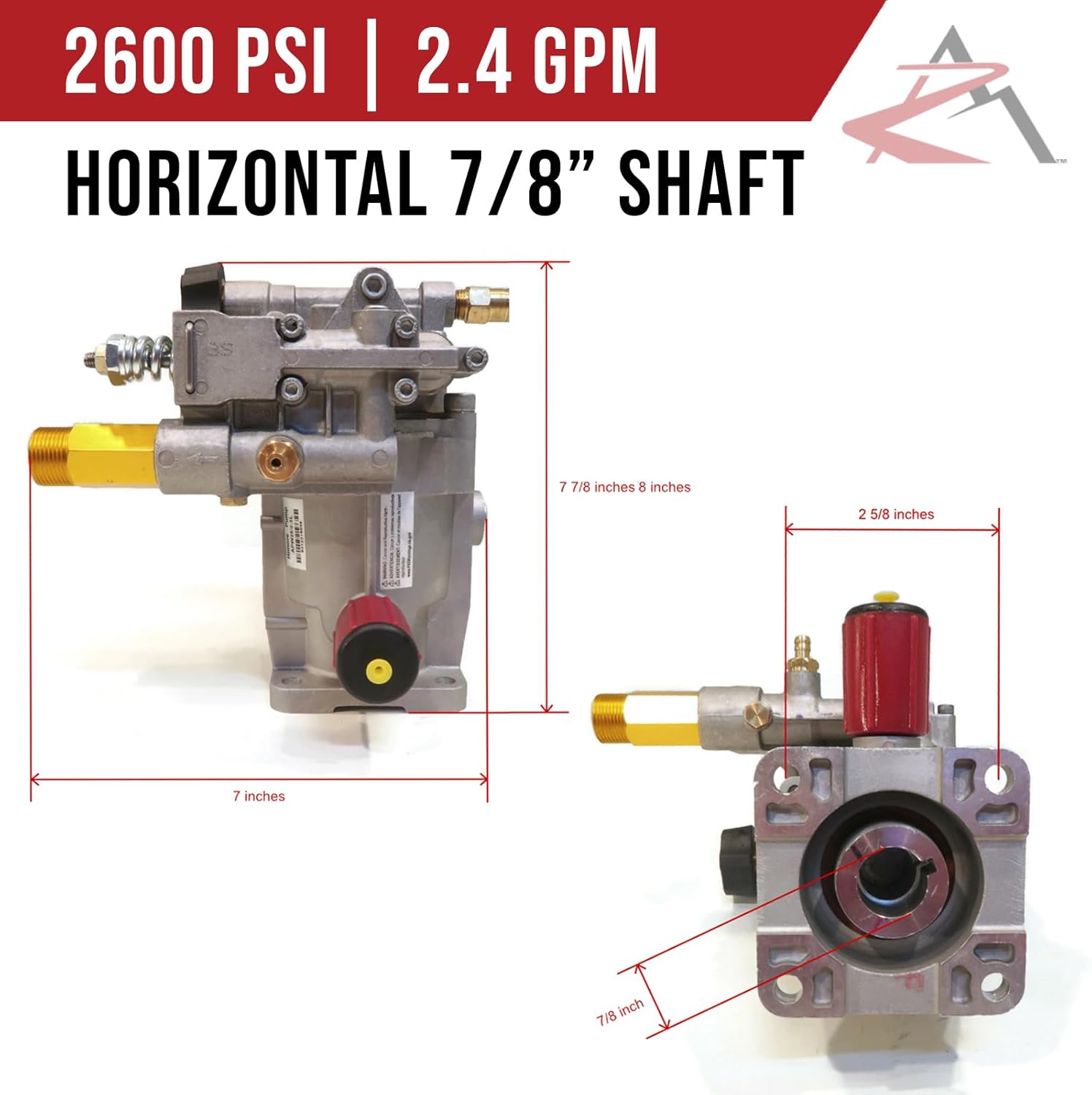

Specs - Pump - Maximum Pressure: 2600 PSI. Maximum Flow: 2.4 GPM. Maximum Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Hollow Short Shaft. Bolt Pattern: 2 5/8" Center to Center & 1 7/8" Center to Each Outer Hole. Maximum Horsepower: 6.5 GHP. Maximum Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Oil Capacity: 75 mls (2.5 oz). Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8". Refer to images 2 & 3 for more information

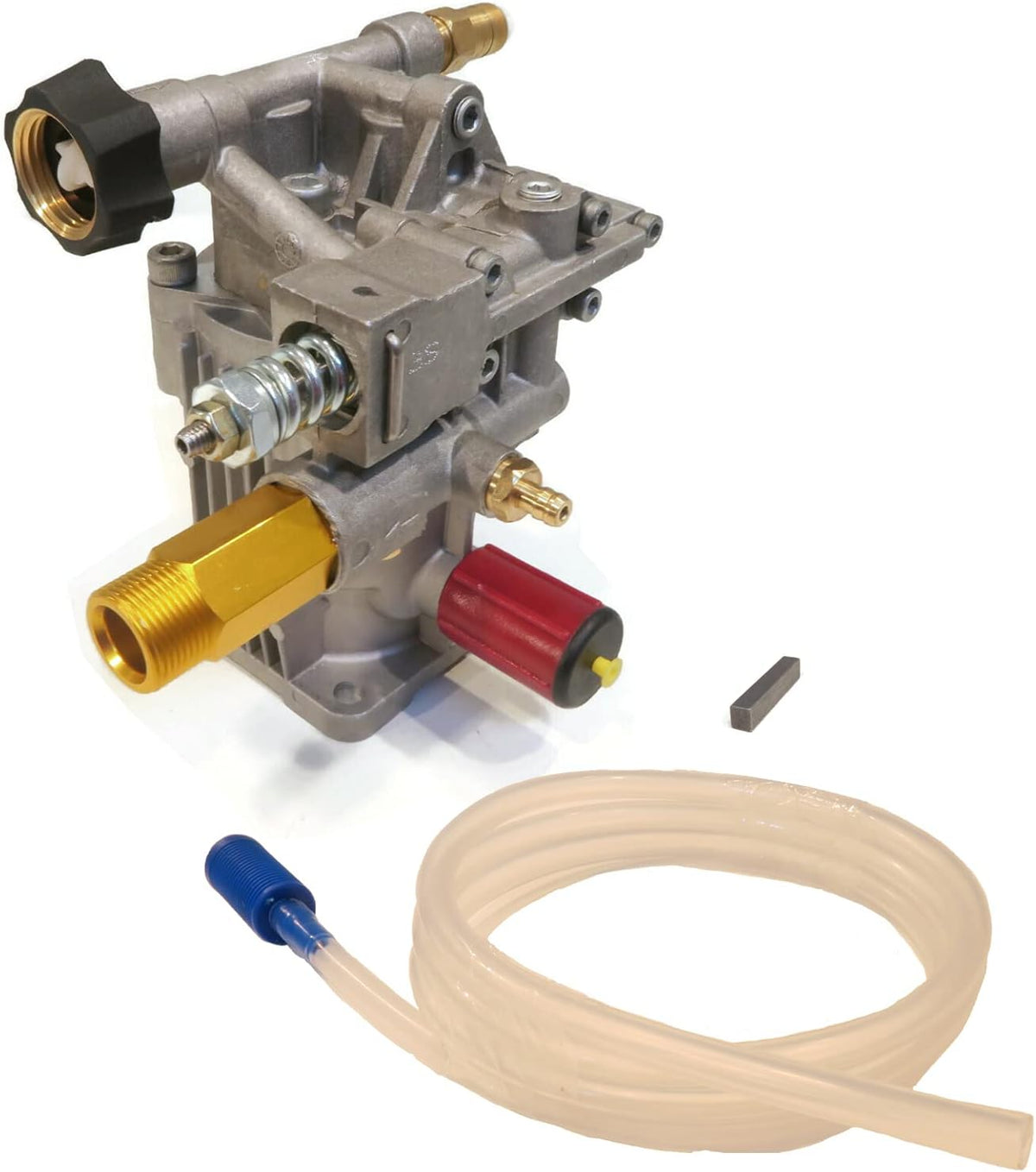

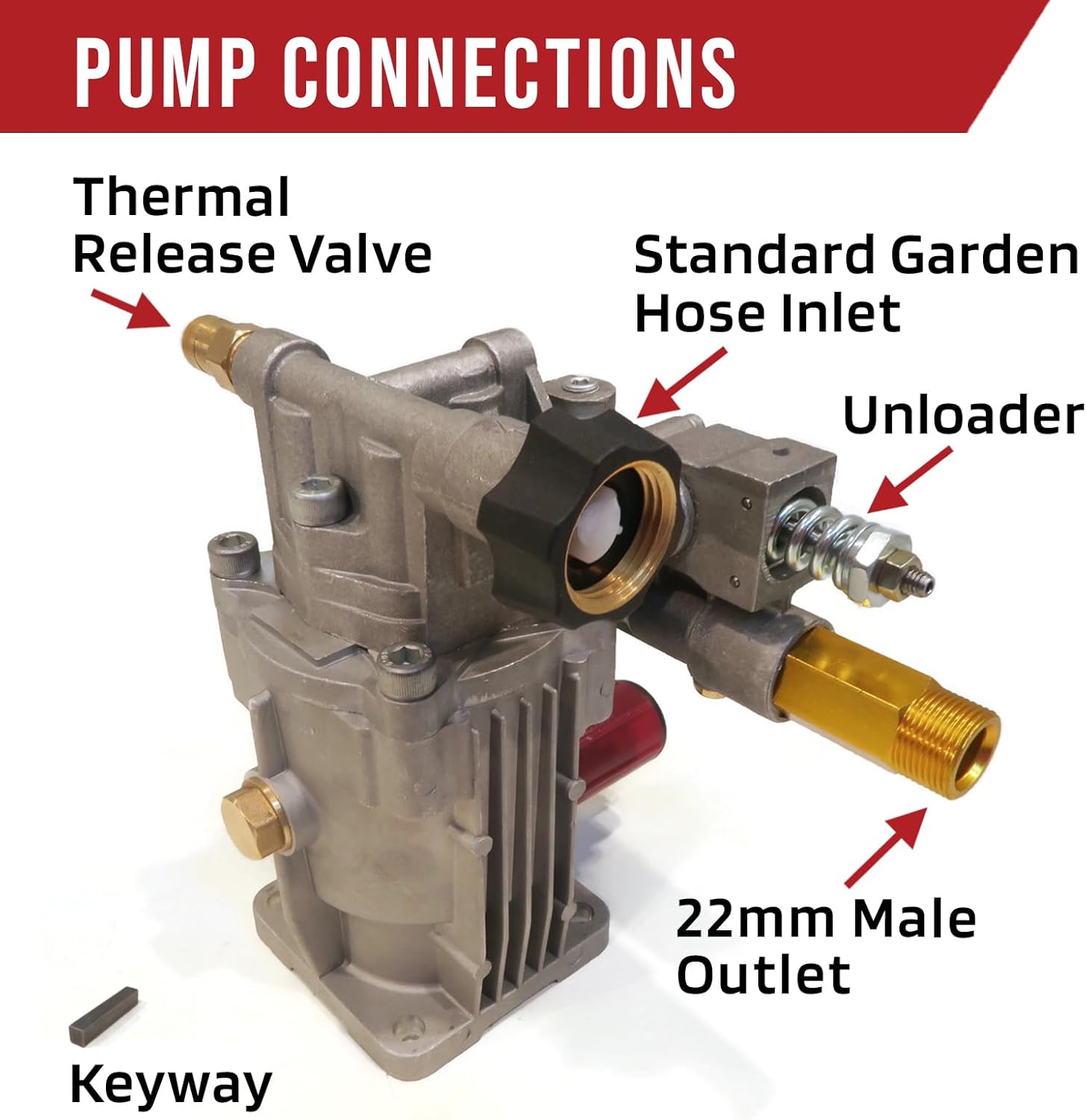

Includes - (1) Pressure Washer Pump with Chemical Injector. Unloader Valve. Thermal Release Valve. Outlet Tube. & Oil Cap. (1) Keyway. & (1) Hose; comes as shown in the first image
This pump mounts horizontal (oil cap points up). Pump needs at least 5HP to handle PSI. Pump head cannot be flipped. Thermal relief valve comes pre-installed
Uses 75 mls (2.5 oz) of 85W-90 gear oil (NOT included). Has a sight glass to view oil level and a drain plug for a simplified oil changing process. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
1Pressure Washer Pumps2Pumps & Spray Kits3Guns. Wands & Nozzles 4Parts & Accessories
Are pressure washer pumps interchangeable?
Many pumps are. However. compatible replacement options do vary depending on your pressure washer's engine shaft diameter & engine orientation. the original pump's bolt pattern. and your engine's horsepower.
What pump do I need if my shaft has a spline/gear instead of a keyway?
Your original pump was likely a strap-style (or bow tie) pump. That style isn't made anymore. However. you can remove the spline and use your model number to find a replacement pump that you'll install directly onto the shaft with a keyway.
Do I need a keyway for installation. and do your pumps come with one?
Our pumps do require a keyway for installation onto the engine shaft. If a keyway is pictured in the listing. it will come with one. If you need to purchase one separately. you can do so from our catalog.
Do I need to change the oil in my pump?
Many of our pumps don't require oil maintenance. but some models do need oil changes. Generally. pumps with an oil vent port will need regular oil changes. Pumps without that port are sealed units and don't need oil changes.
Are pressure washer pumps interchangeable?
What pump do I need if my shaft has a spline/gear instead of a keyway?
Do I need a keyway for installation. and do your pumps come with one?
Do I need to change the oil in my pump?
