Discone Antennas D3000/ Scanner Antenna/CB UHF VHF Antennas 25-3000MHz for Scanner SDR Radio, Receive Transmit HF VHF UHF MW SW HF AIR FM FRS GMRS Antenna
Discone Antennas D3000/ Scanner Antenna/CB UHF VHF Antennas 25-3000MHz for Scanner SDR Radio, Receive Transmit HF VHF UHF MW SW HF AIR FM FRS GMRS Antenna

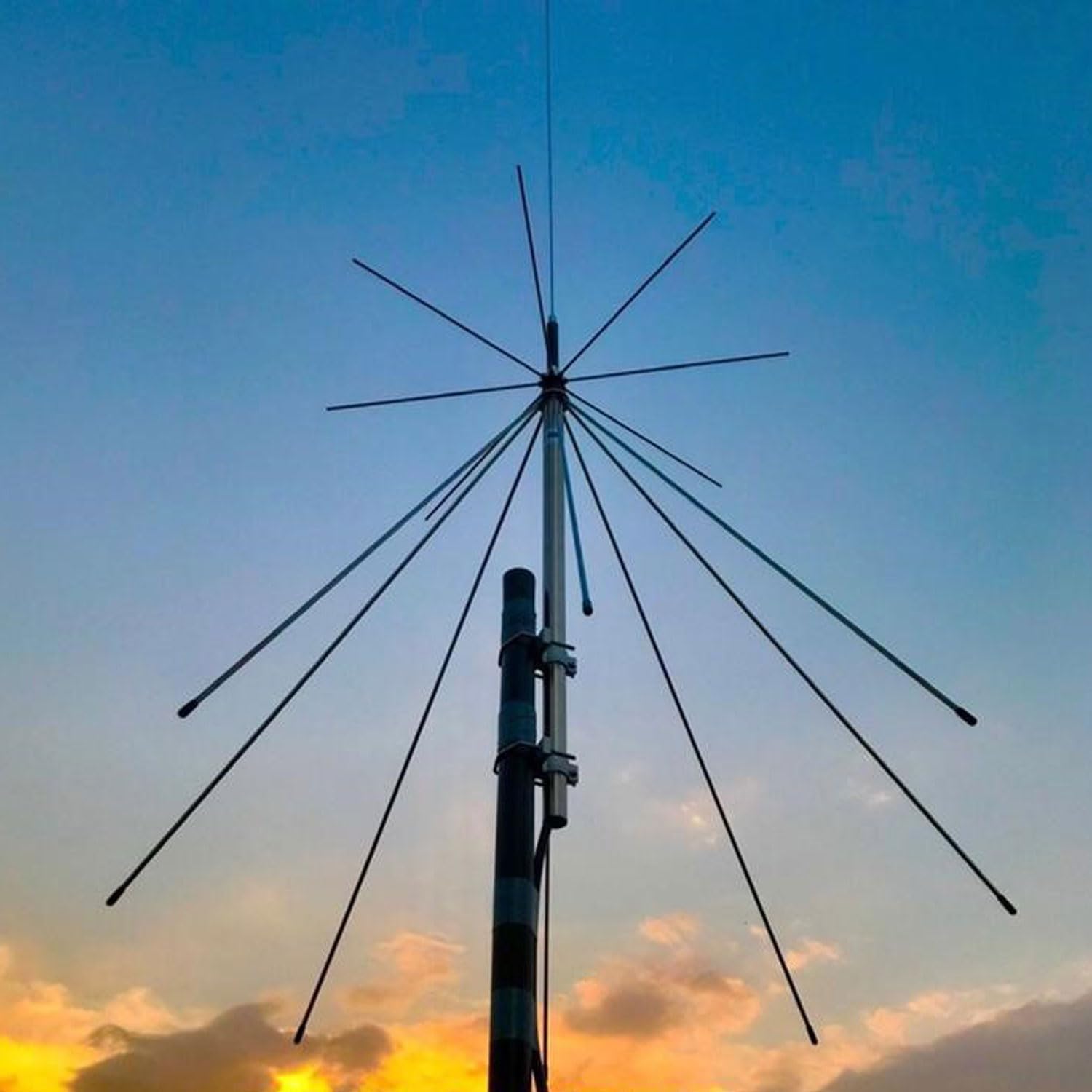

Installation location: On the balcony railing of an apartment or apartment. on the roof or on a mast.
If don't need 25-50 MHz reception. you Can be made further compact and lightweight by removing the top loading coil.

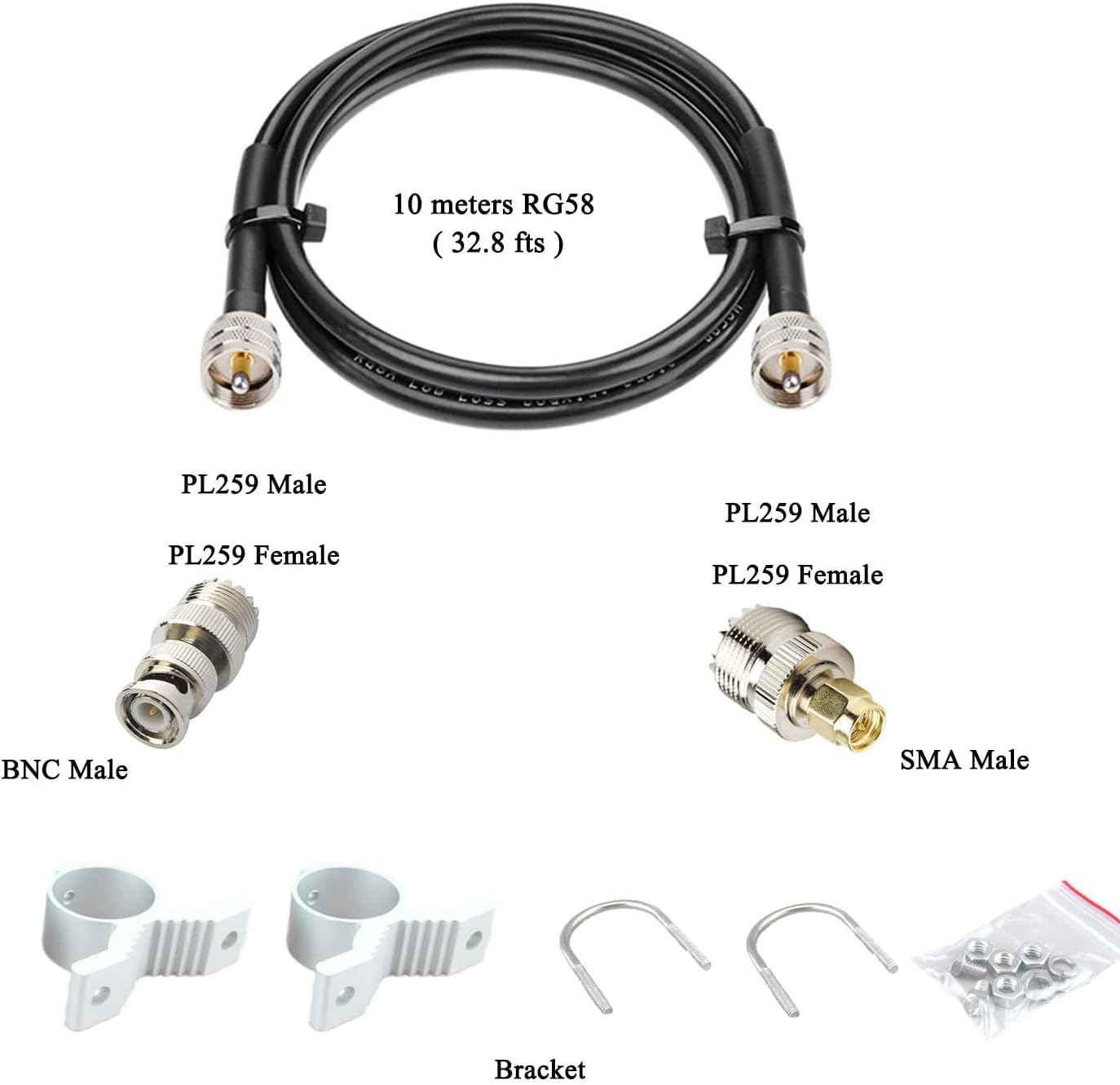

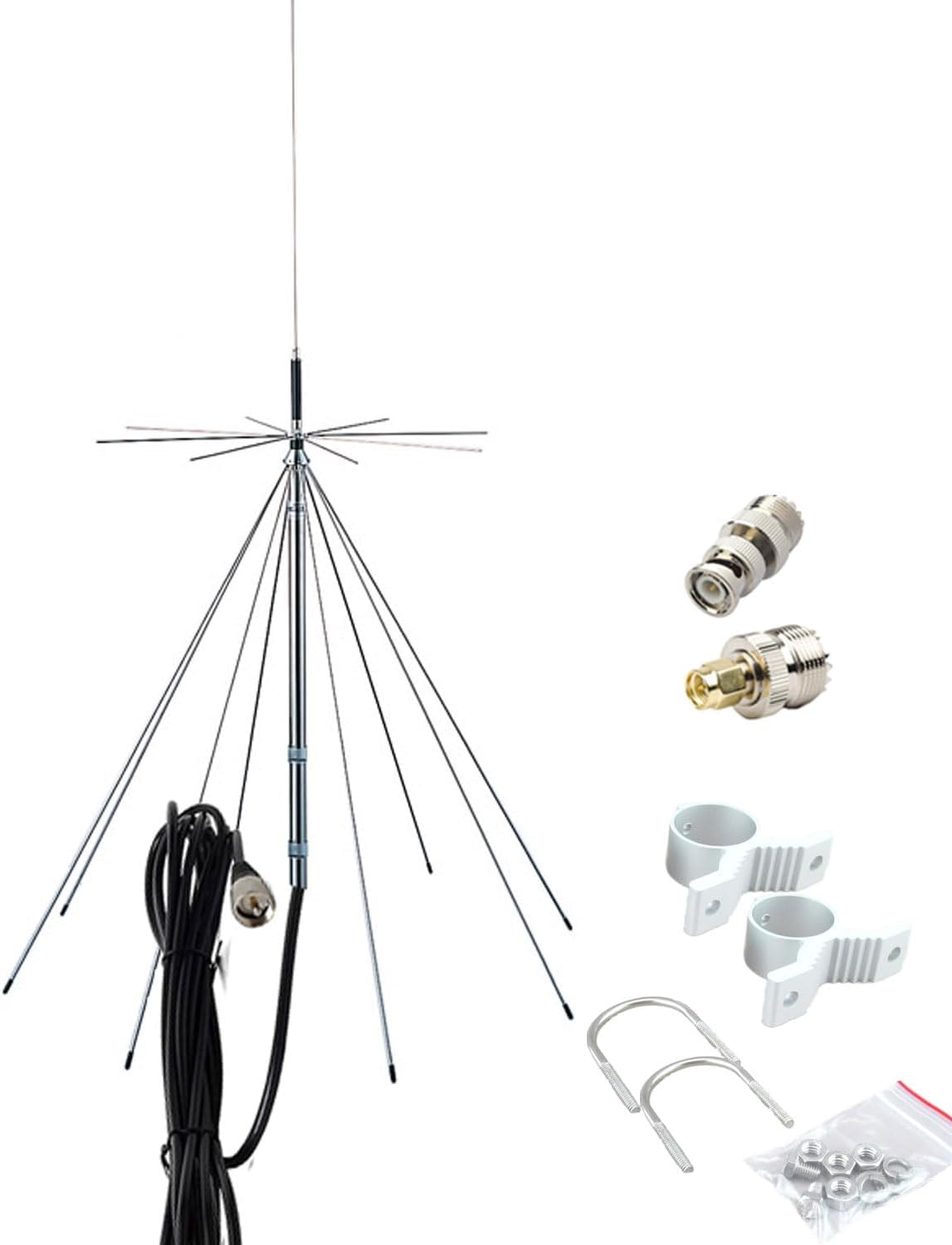

Full Kit: this items includes 10meters RG58 wires with PL-259/ UHF/ SO-239 connector and BNC Male and SMA Male adapter. If your device is with PL-259 female. BNC female. and SMA female connector. you don't need to purchase additional coaxial cable and adapter.
Specifications:
Bands: 25-3000 MHz
Gain dBi: 2dBi-3.5dBi
Max Power Rating: 144 MHz up: 200 watts 6m: 20 watts FM. 50 watts PEP

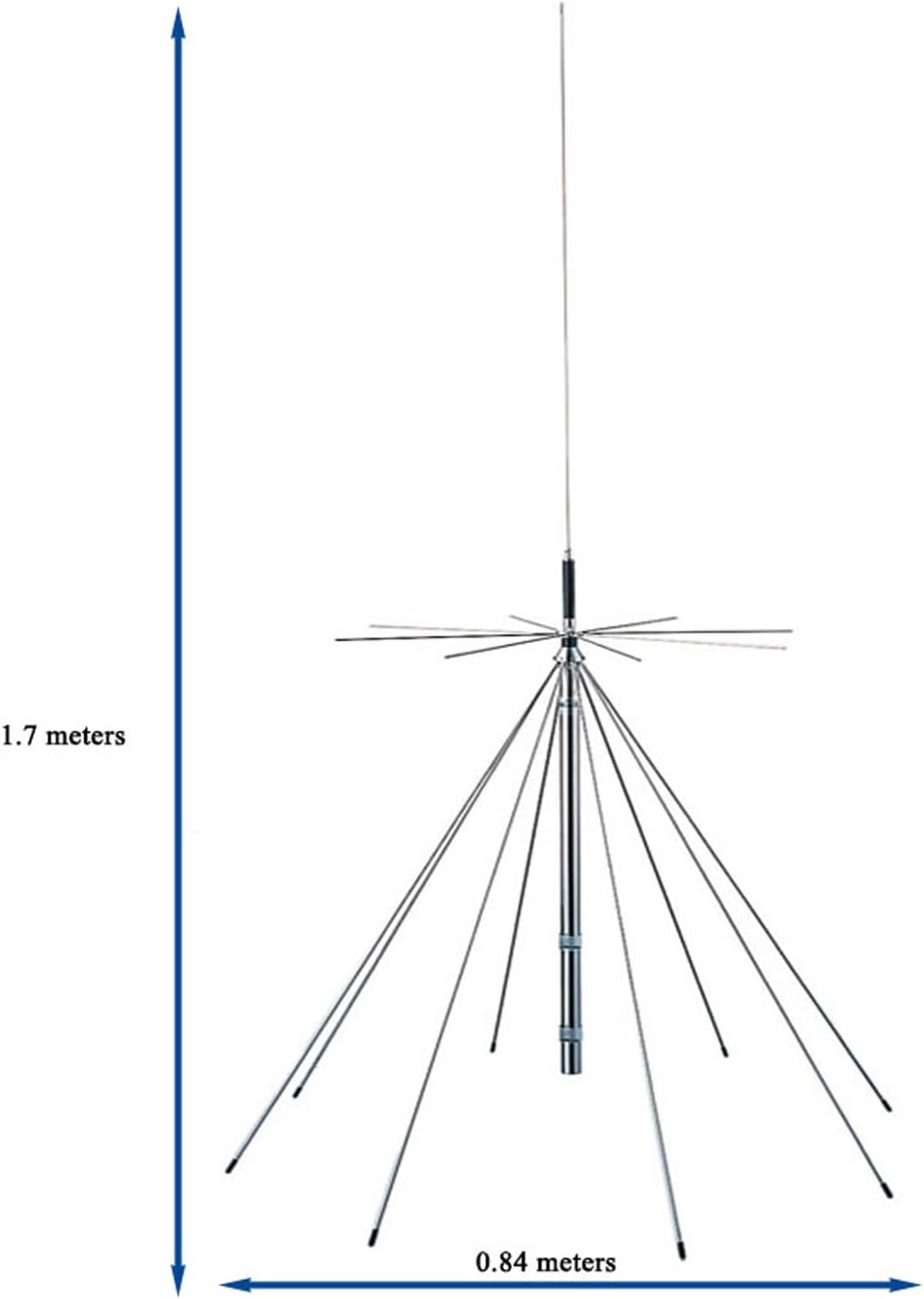

Height: 67"/ 1.7meters
Connector: Type-PL-259/ UHF/ SO-239
Element Phasing: Rust free stainless steel structure
Cable Length: RG58 10meters with SO-239 connector;
Adapter: PL-259 female to BNC Male and PL-259 female to SMA Male.
This Discone Antennas/ Scanner Antenna/ CB UHF VHF Antennas 25-3000MHz for Scanner SDR Radio. Receive Transmit HF VHF UHF MW SW HF AIR FM FRS GMRS Antenna is a high-performance. multi-band antenna designed for use with scanners. SDR radios. and other radio communication equipment. With a wide frequency range of 25-3000 MHz. this antenna is ideal for receiving and transmitting signals in the CB. UHF. VHF. HF. MW. SW. and FM bands.
The Discone Antennas/ Scanner Antenna is a multi-band antenna that features a unique design with three conical discs connected by a central shaft. This design allows for a wide frequency range while maintaining a compact and lightweight construction. The antenna is made of high-quality materials and is built to last. with a durable construction that can withstand harsh outdoor environments.
One of the key features of the Discone Antennas/ Scanner Antenna is its wide frequency range. which makes it suitable for use with a wide range of radio communication equipment. Whether you're monitoring police and fire scanners. amateur radio bands. or other frequencies. this antenna will provide reliable performance.
The Discone Antennas/ Scanner Antenna is easy to install and use. It comes with a mounting bracket and all necessary hardware for mounting on a variety of surfaces. including rooftops. poles. and buildings. The antenna is also adjustable. allowing you to fine-tune your reception and transmission for optimal performance.
In summary. the Discone Antennas D3000/ Scanner Antenna is a high-performance. multi-band antenna that is ideal for use with scanners. SDR radios. and other radio communication equipment. With its wide frequency range. durable construction. and easy installation. this antenna is a great choice for anyone who needs reliable reception and transmission in a variety of bands.
Compatible with Radio Scanner: SR30C. BC125AT. BCD436HP. BC75XLT. BCD325P2. BC355N. BCD996P2. BC365CRS. BCT15X. BCD536HP. BC345CRS. BCD996XT. BC278CLT. BC350A. BC350C. BC355C. BC340CRS. BC370CRS. BC700A. BC780XLT. BC785D. BC796D. BC860XLT. BC895XLT. BC898T. BCT7. BCT8. BC75XLT. BC55. BC60XLT. BC80XLT. BC72XLT. BC92XLT. BC95XLT. BC100. SC230. BC200. SC200. SC150. SC180. SC235. BC120. BC72. BC80. BC246. BR330;
Compatible with Radio Scanner: WS1040 WS1088 WS1010 WS1080 WS1025 WS1065 TRX1 TRX2;
Compatible with Radio Scanner: PRO-2018 PRO-197 PRO-650 PRO-163 PRO-405 PRO-528 PRO-668 PRO-94 PRO-404 PRO-95 PRO-62 PRO-83;
Compatible with Ham Radio: TK100. TK200. TK210. TK220. TK300. TK310. TK320; : IC-V8. IC-V80. IC-V82. IC-U82 .IC-W32; : HT440. HT90; : HR. CP500. CP520. 1015; Standard: 734. 834. HR146. HX300. HX320. HX400. CU32. CP/CS 5015. 0420; HH979; : HH152. HH154. HH156. HH462. HH464;
