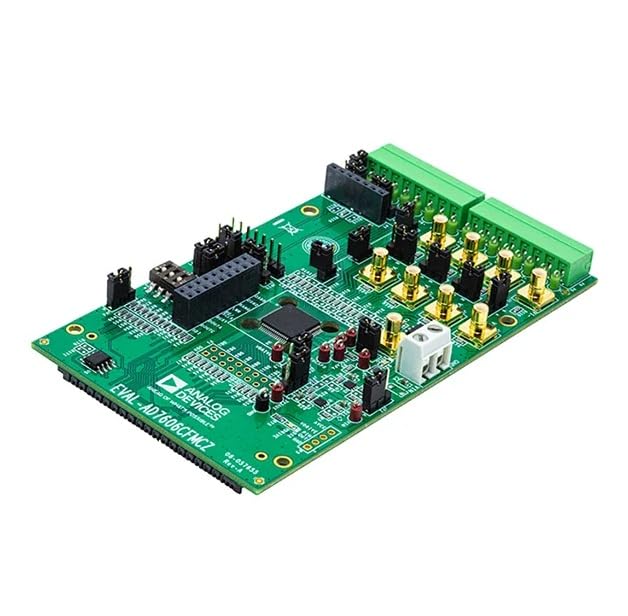

Analog Devices EVAL-AD7606C18FMCZ Evaluation Board, 18-Bit 1M Samples per Second ADC, 8 Channel Converter
Analog Devices EVAL-AD7606C18FMCZ Evaluation Board, 18-Bit 1M Samples per Second ADC, 8 Channel Converter
8-Channel Converter: Equipped with 8 simultaneous sampling analog-to-digital converters allowing multi-channel data acquisition and analysis
Flexible Data Interface Options: Supports multiple communication protocols including DSP. Parallel. Serial. and SPI interfaces for versatile system integration
Wide Input Range: Accepts bipolar input signals up to ±20V. making it suitable for a broad range of industrial and instrumentation applications
Low Power Consumption: Operates at only 245mW at 1MSPS. providing efficient performance for battery-powered and energy-conscious designs
The Analog Devices EVAL-AD7606C18FMCZ is a comprehensive evaluation board designed to showcase the capabilities of the AD7606C-18. an advanced 18-bit analog-to-digital converter. This development board features 8 simultaneous sampling channels capable of converting analog signals at speeds up to 1 million samples per second. making it ideal for high-speed data acquisition applications. With a wide input range of ±20V. this evaluation platform can handle a variety of signal levels without additional conditioning circuitry. The board offers flexible connectivity options including DSP. parallel. serial. and SPI data interfaces. allowing engineers to easily integrate it into existing systems and prototype designs. Operating at a typical power consumption of 245mW at 1MSPS. this evaluation board provides an efficient solution for testing and validating precision measurement systems. Whether you're developing industrial automation equipment. medical instrumentation. or test and measurement devices. this evaluation board provides all the necessary tools to assess the AD7606C-18's performance in your specific application.
